A project timeline can be created in Excel using charts linked to data tables, so that the chart updates when you edit the data table. The first template on this page uses a stacked bar chart technique and also includes up to 4 milestones as vertical lines. This template is a cross between my project schedule and task list templates. I've populated the template with some generic product development terminology, but it is designed for you to enter your own tasks and dates. The second template uses a scatter chart with data labels and leader lines to create a more traditional type of timeline.

Advertisement

Project Timeline Template

for Excel
Project Timeline Template with Milestones
⤓ Download
For: Excel 2013 or later

"No installation, no macros - just a simple spreadsheet" - by

License: Private Use
(not for distribution or resale)

Using the Project Timeline Template

Grouping Tasks Using Different Colors: One of the key features of this template is the ability to choose a different color for the bars in the timeline via a drop-down box in the Color column. This makes it easy to identify the different phases or categories of tasks. You can insert and delete tasks by just inserting or deleting rows in the spreadsheet's data table.

The example above shows some of the steps in a product development cycle (Concept Development, System Design, Detail Design, Testing and Refining, Production, etc.), with different colors representing different phases of the cycle. However, there are other ways to use this type of timeline. Another common way to group tasks within a project timeline is by key organization function, such as Marketing, Design, Testing, Manufacturing, Finance, Sales, Quality Assurance, Legal, etc.

Milestones: With any project timeline, you will most likely want to define at least a couple key milestones. In the above example you will see 3 milestones as vertical lines. You can edit the milestone labels and dates via the data table. The template lets you show up to 4 milestones. Adding more is possible but would require you to create the new data series yourself (you can't just insert rows for more milestones like you can with the tasks).

Can I Add More Colors? This project timeline is set up to allow up to 6 different color choices. Adding more colors is possible, but that would require more Excel experience. Some general steps to follow to attempt adding more colors:

  1. Add a new column to the right of the current data table.
  2. Copy the formulas in the previous column into the new column.
  3. Select the timeline and drag the range marker to the right to include the new column.
  4. Add some data to see what color the new column uses and then update the column label.
  5. Update the list used for the data validation drop-down box in the Color column to include the new label.

Dates Not Changing in the Chart? To edit the range of dates shown in the chart, you need to edit the Minimum and Maximum bounds of the horizontal axis. Right-click on the axis and select Format Axis.

Want More Flexibility / Ease of Use? If you don't care about automation and just want a simple way to create a high-level project timeline, you might want to try the Project Schedule Template. Colors are modified by just changing the background colors of the cells in the spreadsheet.

Advertisement

Project Timeline Chart

for Excel
Project Timeline Chart with Milestones and Tasks
⤓ Download
For: Excel 2013 or later

License: Private Use (not for distribution or resale)

Description

This project timeline uses two different scatter chart series to display milestones above the timeline and tasks with durations below the timeline. The durations are created using X Error bars. The length of the leaderlines for the tasks can be defined by the user to show task dependencies.

The vertical positions of the tasks and milestones are adjusted by the user. This may work great for some timelines, but if you have more than 20 tasks to show, you may be better of using a Gantt Chart.

This template is based on the original Vertex42 Excel Timeline Template, which was one of the first timeline templates developed for Excel using the technique of leaderlines and error bars for durations. This new project timeline works only in the more recent versions of Excel (2013 or later) because of the new feature in Excel that allows you to specify a range of cells for Data Labels.

To learn how to create a timeline using a scatter chart, see the video demos for the Bubble Chart Timeline and Vertical Timeline templates.

Use a Graphic as a Data Point Marker in a Project Timeline

You can add graphics to a project timeline to make it more interesting or visually appealing. For example, you may want to mark the final milestone with a finish-line flag, as shown in the image below. To do this, you will first need to create a graphic using your favorite image editing app, or download one. The diamond Diamond Milestone Marker and flag Finish Line Flag Marker that I use in my project timelines were created from screenshots of common unicode characters.

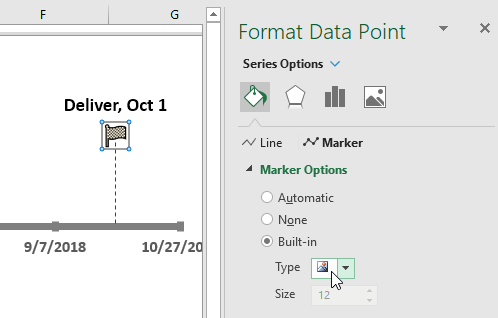

Change a Data Point Marker in a Project Timeline

Steps for using a graphic as a data point marker:

  1. Select a single data point by clicking on it and then clicking on it again.
  2. Right-click on the selected data point to open the Format Data Point task pane.
  3. Click on the Bucket > Marker > Marker Options > Built-in, then select the picture icon from the Type drop-down.
  4. Select the image from your computer.

To see other examples of using graphics in a timeline, see my original Timeline Template.
